Overview

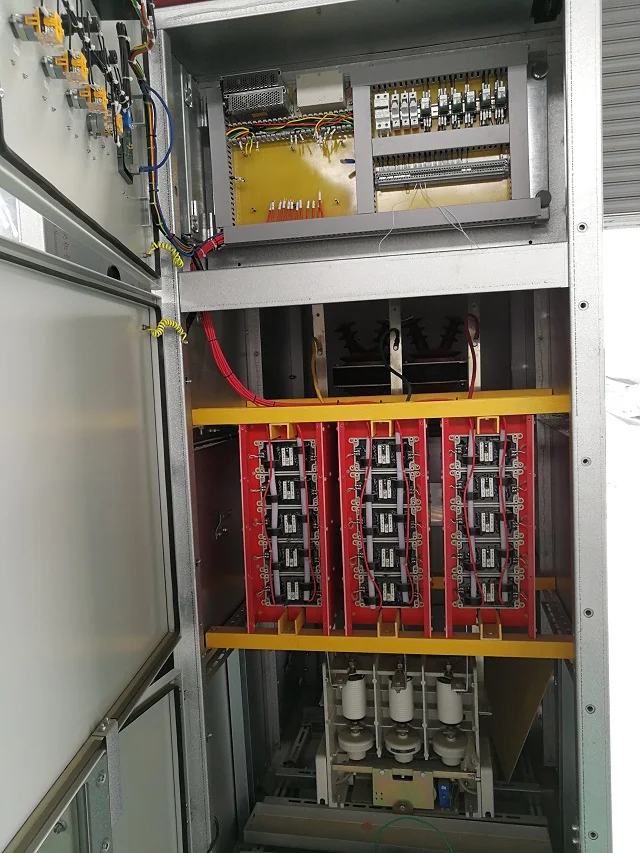

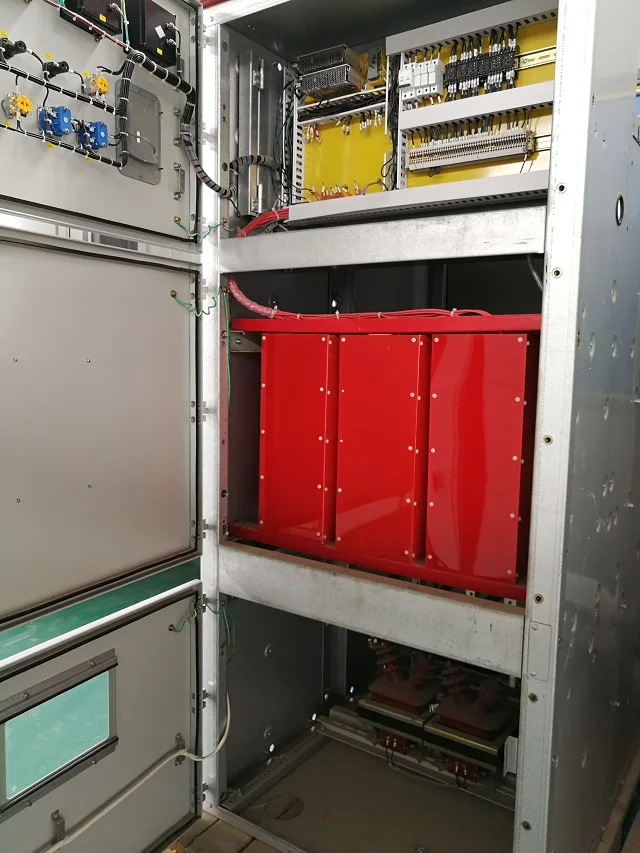

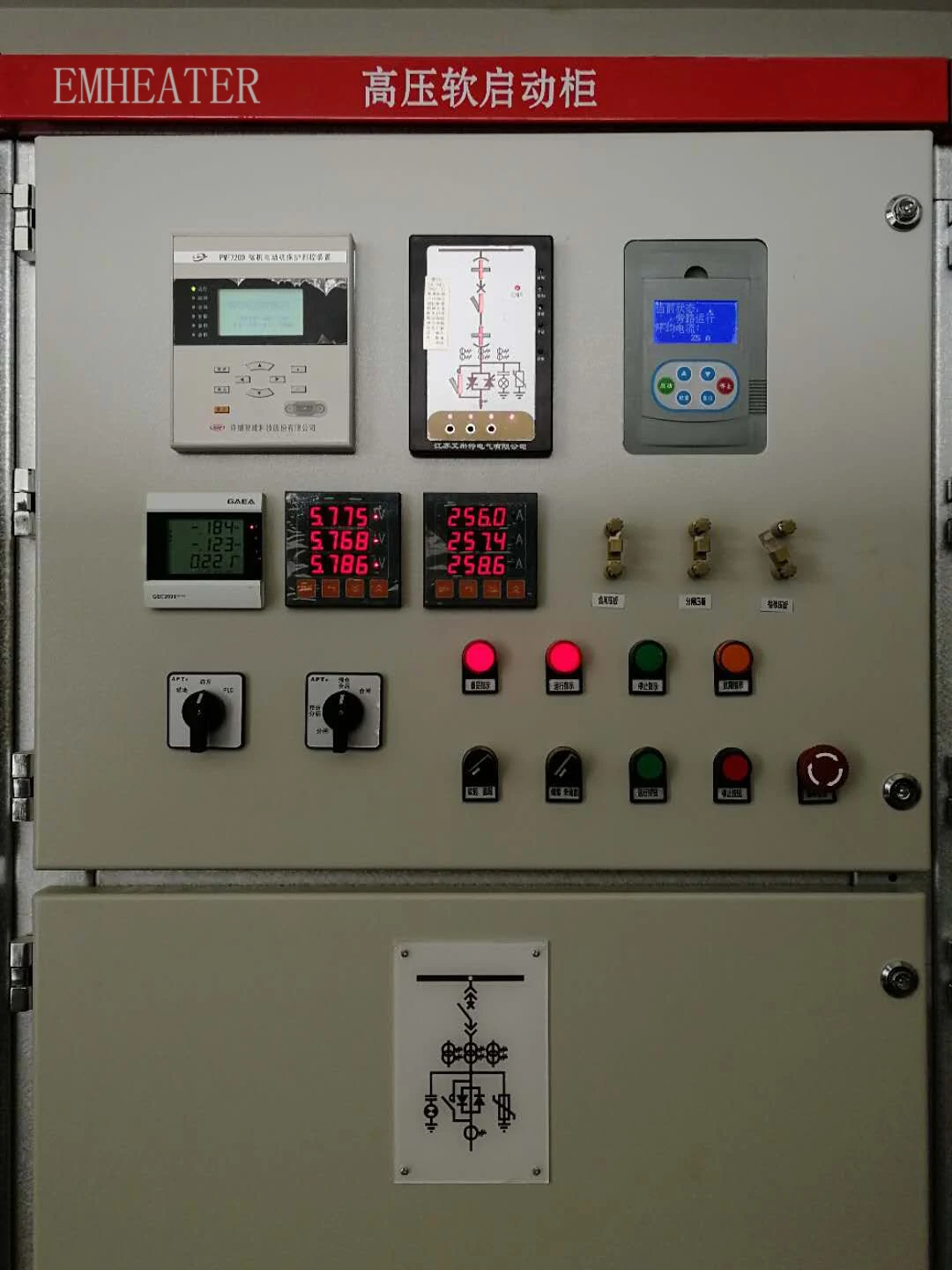

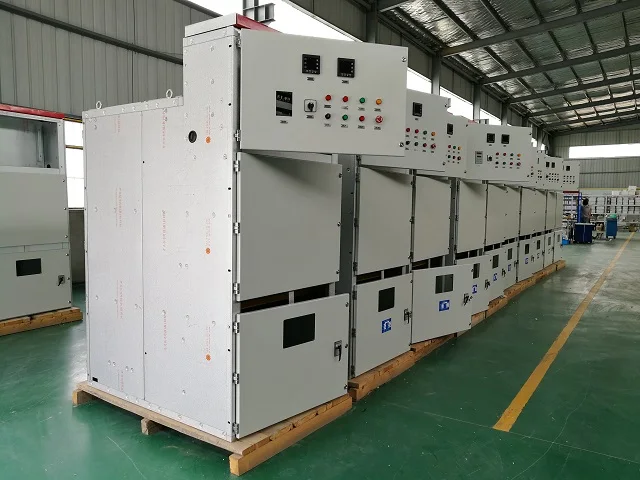

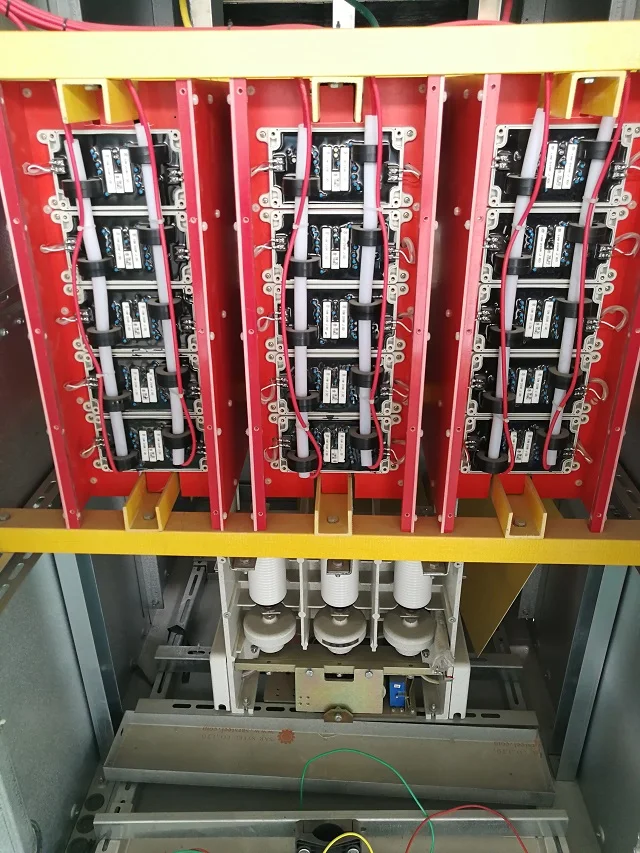

Projects pictures:
3kv/6kv/10kv/11kv中壓電機固體軟啟動器300KW高品質固體軟啟動器特點:
過載能力:500%滿載電流運行30s, 6倍滿載電流1個周期。
相序:可在任意相序下工作。
三相電源:AC3KV、6KV、10KV、15KV (-15%+10%)
控制電源:AC/DC220V (-15%+10%)
頻率:50Hz, 60Hz±2%
適用電機:鼠籠式異步電機和同步電機
啟動頻率:可以頻繁啟動，建議每小時不超過10次
防護等級:IP4X
冷卻方式:風冷
地點:室內
環(huán)境條件:當海拔超過1500m時，應降低容量
3kv/6kv/10kv/11kv Medium Voltage Motor Solid Soft Starter 300KW High Quality Solid Soft Starter features:
Overload capacity: 500% full loaded current operation 30s, 6 times full loaded current 1 cycle.
Phase sequence: it can work under any phase sequence.
Tri-phase power supply: AC3KV, 6KV, 10KV, 15KV (-15%+10%)
Control power supply: AC/DC220V (-15%+10%)
Frequency: 50Hz, 60Hz ±2%
Motors to be suitable for: squirrel-caged asynchronous motors and synchronous motors
Starting frequency: it can start frequently, no more than 10 times per hour is suggested
Protection level: IP4X
Cooling manner: air cooling
Location: indoors
Ambient conditions: when altitude is over 1500m, capacity shall be lowered
correspondingly
Ambient temperature: -25---+45 degrees
Relative humidity: no higher than 95% (20+5 degrees), no dew condensation
No inflammable, explosive or corrosive air, no conductible dust, good ventilation, less than 0.6G in vibration.

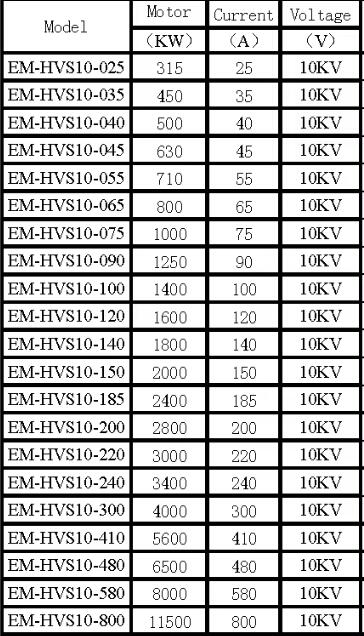

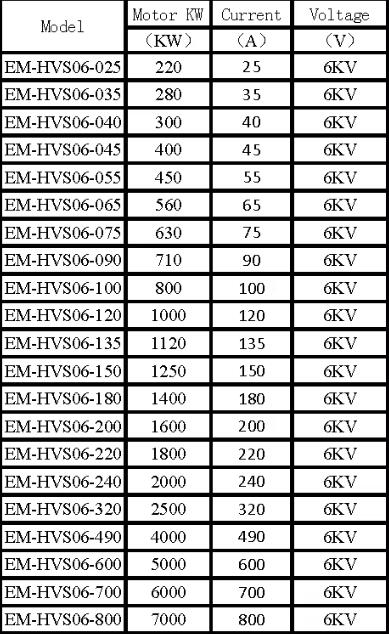

Models:

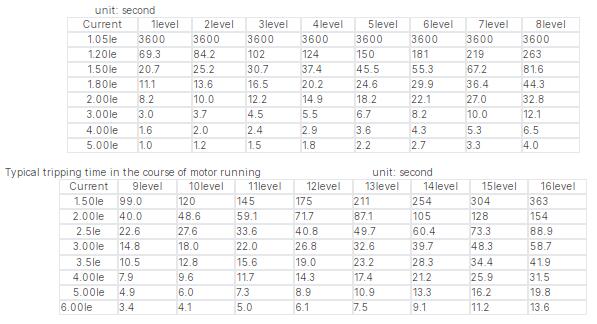

Typical tripping time in the course of motor running
Areas of application:
Electronics, textile, light industry, building materials, food, machinery, printing and dyeing, petrochemical, paper, logistics transportation,
Wire drawing machine, winding machine, blow molding, chemical fiber, tobacco, grinder, mixer, extruding machine, injection molding machine, chemical industry, etc.
